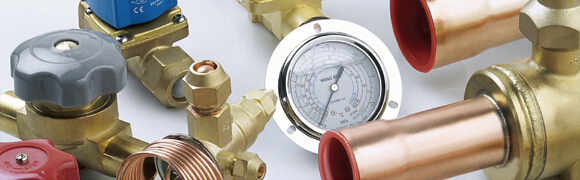

To control the refrigerant gas of refrigeration unit system, refrigeration solenoid valves are one of automatic control parts used with liquid line, suction line and steam line, widely applicable for central air-conditioner, refrigeration compressor group, coldstrorage equipment and bus air-conditioning system.
Regular refrigerant for R12, R22, R134a, R404, R407c, R410 and R502a.
Media Temperature from -30 degree to +105 degree.
Servicing Lift for 100,000 cycles
Working Pressure for 3.0MPa
Available models for Flare, Solder and Mini types
|
Model |
Operating Principles |
Port Size |
Connection Size |
Opening Pressure Differential (Bar) |
KV factor (m³/h) |
|||
|
SAE(in) |
ODF |
|||||||
|
in. |
mm |
Min. |
Max. |
|||||
|
SH-1020/2 SAE |
Direct Acting |
2.5 |
1/4″ |
0 |
21 |
0.175 |
||
|
SH-1020/3 SAE |
3/8″ |
0.23 |
||||||
|
SH-1028/2 ODF |
1/4″ |
0.15 |
||||||
|
SH-1028/3 ODF |
3/8″ |
0.23 |
||||||
|
SH-1064/3 SAE |
Diaphragm Pilot Operated |
7.0 |
3/8″ |
0.05 |
0.80 |
|||
|
SH-1064/4 SAE |
1/2″ |
|||||||
|
SH-1068/3 ODF |
3/8″ |
|||||||
|
SH-1068/4 ODF |
1/2″ |
|||||||
|
SH-1070/4 SAE |
12.5 |
1/2″ |
2.20 |
|||||
|
SH-1070/5 SAE |
5/8″ |
2.61 |
||||||
|
SH-1078/4 ODF |
1/2″ |
2.20 |
||||||
|
SH-1078/5 ODF |
5/8″ |
16 |
2.61 |
|||||
|
SH-1078/6 ODF |
3/4″ |
|||||||
|
SH-1079/7 ODF |
7/8″ |
22 |
||||||
|
SH-1098/6 ODF |
16.5 |
3/4″ |
4.80 |
|||||
|
SH-1098/7 ODF |
7/8″ |
22 |
5.70 |
|||||
|
SH-1099/9 ODF |
1-1/8″ |
|||||||
|
SH-1078/9 ODF |
25.5 |
1-1/8″ |
10 |
|||||
|
SH-1079/11ODF |
1-3/8″ |
35 |
||||||
